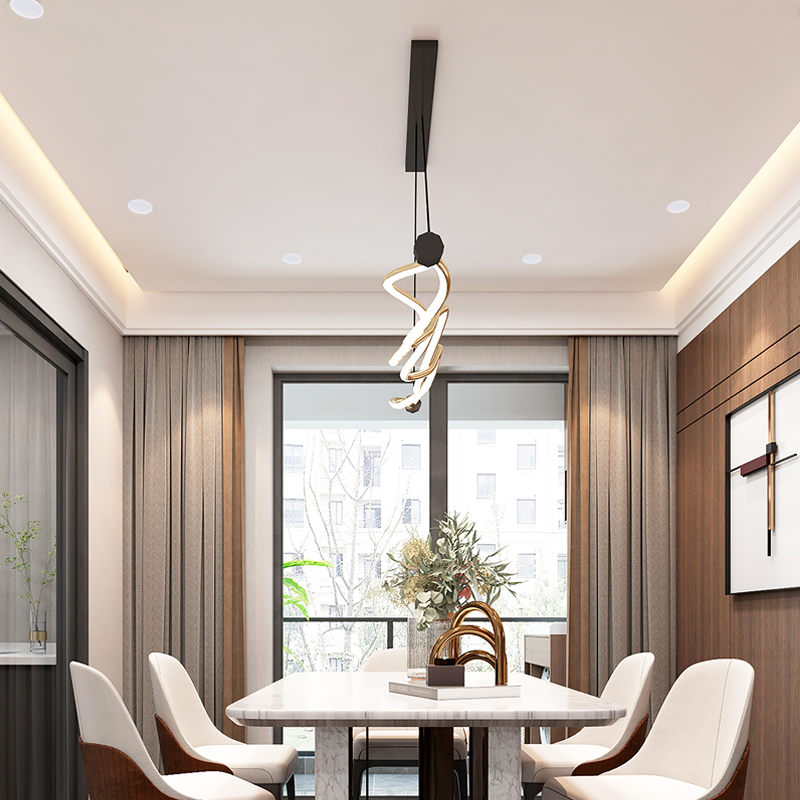

MTC-TD-6 Product visuals.jpg

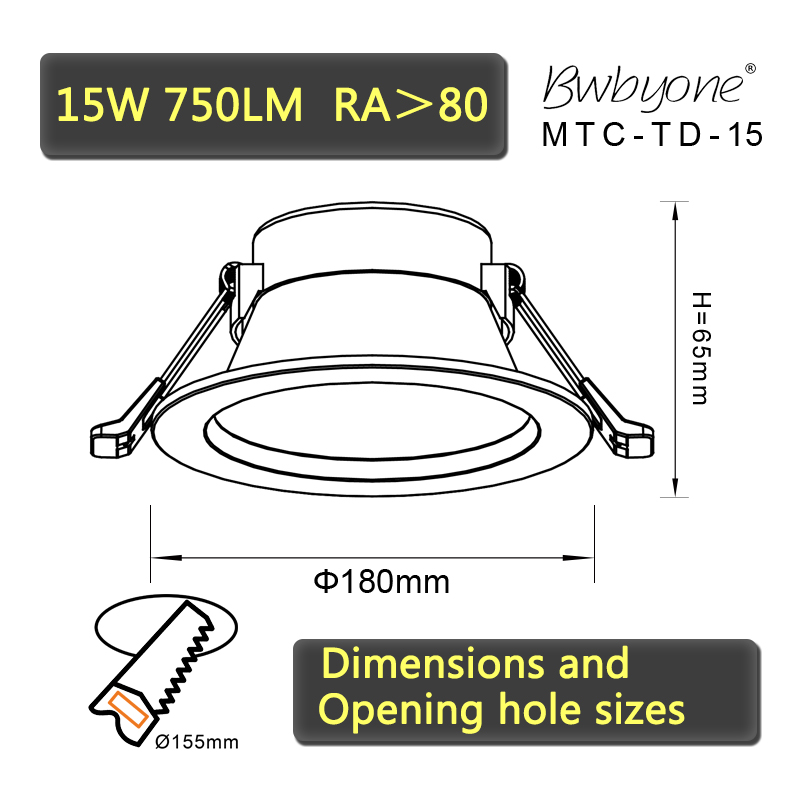

MTC-TD-15 Line drawing.jpg

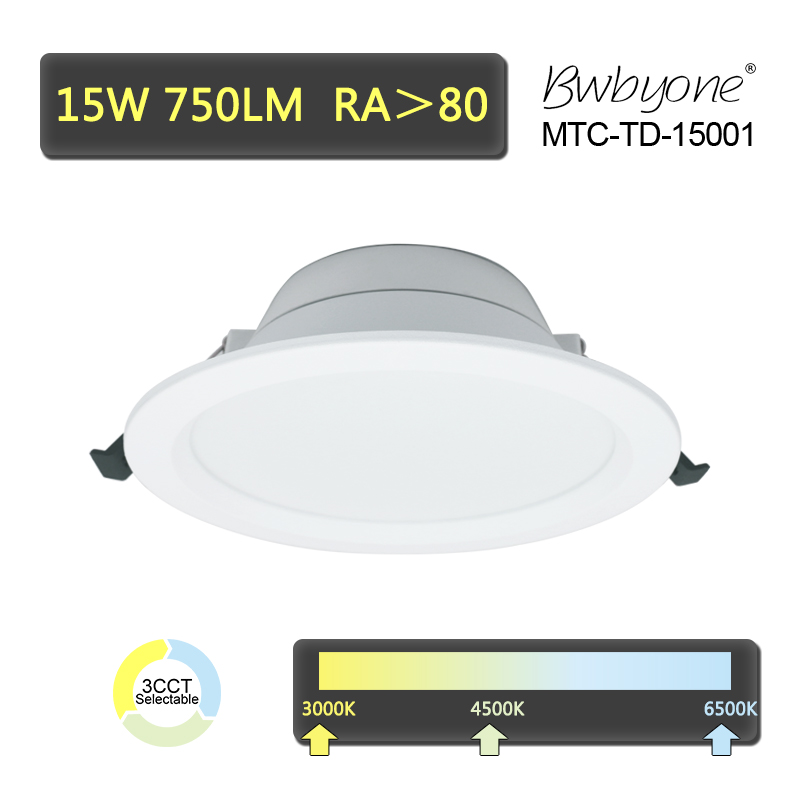

15W 750LM MTC-TD-15001 LED Recessed Mounted Downlight

Engineered for larger ceiling spaces, this 15W LED downlight delivers 750 lumens of comfortable brightness, making it suitable for high usage areas that require consistent, low glare lighting. It is compatible with ceiling openings around 155mm and comes in both single fixed color temperature and tri-color selectable (3CCT in one) types, supports commonly used color temperatures at 3000K, 4500K, and 6500K. Designed with good thermal handling and stable driver integration, this model is built to meet the performance demands of large areas office, retail, or institutional buildings. It runs reliably on standard 220~240V input voltage at 50/60Hz frequency.

    Send Inquiry
    cpbjtp

    LED Recessed Mounted Panel Light

    We offer OEM/ODM manufacturing services according to specific requirements across to most markets worldwide.

    product details

    Product models and descriptions

    MTC- abbreviation of a sub-brand of Byone,which means this series is morden theme and Cost-effective

    TD- Product series

    15- Product rated power

    00/01/02- Product finish color: 00-white,01-silver,02-black

    1/3- Product color temperature:1- single color temperature,3-3CCT in 1

    Example:

    MTC-TD15001: White finish color, single color temperature

    MTC-TD15023: Black finish color, 3-CCT in 1 switchable color temperature

    Always consult our qualified salesperson to know more about our product models and descriptions.

    Product specification

    Input Voltage:220V~240V,50/60Hz
    Power:15W
    Luminous:750 lm
    Chips model:SMD2835
    Color temperature : Available in 3000K/4500K/6500K single color temperature

    Power factor:>0.5CRI:Ra>80Dimensions:H65 x Φ180 mm

    Opening sizes: Φ155mmHousing material:Steel with PCFinish color: Available in White,Silver,Black or any other customized colors  Working temperature: -20 ~ 40° C

    Application and installationThis model is designed for ceiling-mounted recessed use in large meeting rooms, hotel lobbies, educational facilities, mid-size supermarkets, and transit waiting areas. It is ideal for public or semi-public zones that call for consistent light quality and simplified installation across multiple units.

    Features

    ●Produces 750 lumens at 15W Power, well suited for general lighting in wide, open plan areas with higher ceiling clearance.
    ●Offers both single color temperature models and integrated 3CCT in one model with build in manual selection switch, simplifying SKU planning.
    ●The optical system is designed to provide uniform light distribution with reduced glare, supporting comfortable ambient lighting in daily use environments.
    ●Constructed with a corrosion resistant housing and long life LED chips, supporting demanding daily use in commercial installations.
    ●Electrical specifications and housing dimensions are aligned with mainstream international project requirements, making it suitable for distributors targeting price performance driven markets.

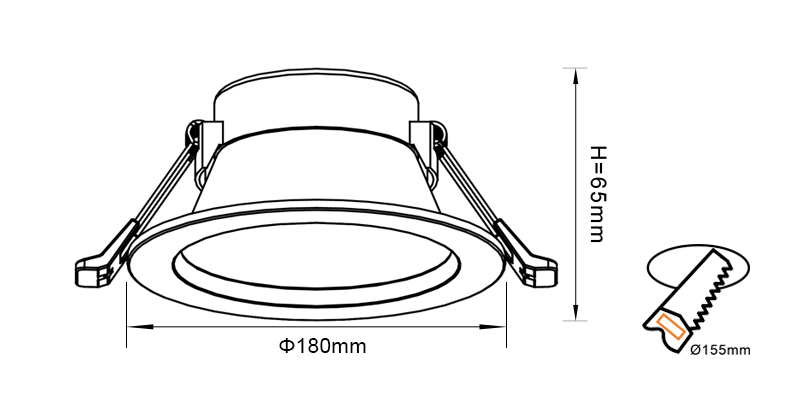

    Line Drawing

    MTC-TD-15 Line drawing m
