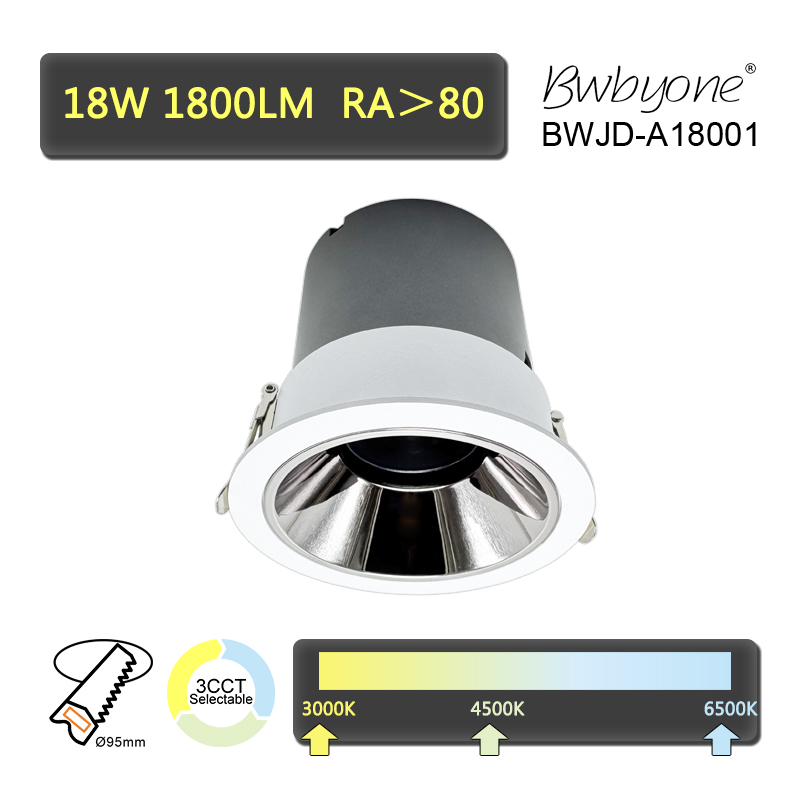

18W 1800LM BWJD-A18001 LED Recessed Spot light

This 18W recessed spotlight features a high performance COB light source, producing up to 1800 lumens with consistent output and stable quality. Its integrated aluminum housing ensures effective heat dissipation and durability over time. Operating within a wide voltage range of 85~265V, it meets general lighting requirements for global residential and commercial markets. The reflector comes in multiple mirror-finish color options, allowing for flexible integration into different design environments.Equipped with an adjustable rotation ring that allows for modification of the beam direction within a certain angle range, offers greater flexibility during installation and use, especially in retail, gallery, or residential settings where lighting needs may change over time.

    Send Inquiry
    cpbjtp

    LED Recessed Mounted Panel Light

    We offer OEM/ODM manufacturing services according to specific requirements across to most markets worldwide.

    product details

    Product models and descriptions

    BW- abbreviation of company name Byone

    TD-A - Product series

    18- Product rated power

    0/1/2- Mounting ring finish color: 0-white,1-silver,2-black

    0/1/2- Reflector Finish color: 0-white,1-silver,2-black

    1/3- Product color temperature:1- single color temperature,3-3CCT in 1

    Example:

    BWJD-A18001: White mounting ring,White reflector finish color, single color temperature

    BWJD-A18021: White mounting ring,Black reflector finish color, single color temperature

    Always consult our qualified salesperson to know more about our product models and descriptions.



    Product specification

    Input Voltage:85V~265V,50/60Hz

    Power:18W

    Luminous:1800 lm

    Chips model:COB

    Color temperature : Available in 3000K/4500K/6500K single color temperature

    Power factor:>0.5

    CRI:Ra>80

    Dimensions:H85 x Φ105 mm

    Opening sizes: Φ95mm

    Mounting ring material:Aluminium

    Mounting ring finish color: Available in White,Silver,Black or any other customized colors

    Reflector Finish color:Available in a variety of mirror finishes: silver, gold, rose gold, black chrome, and titanium etc.

    Working temperature: -20 ~ 40° C

    Application and installation:Suitable for a wide range of indoor spaces where both efficiency and visual comfort are required. It performs well in apartments, retail interiors, small offices, and hospitality settings such as guest rooms and corridors, offering balanced brightness without excessive glare.

    Features

    l  The high efficiency COB LED engine delivers uniform illumination with minimal light loss and better optical control, making it suitable for ambient or focal lighting.

    l  Aluminum Mounting Ring and steel spring clip provide structural strength while supporting thermal regulation, ensuring long-term reliability under continuous use.

    l  Adjustable rotation ring enables targeted lighting without repositioning the entire fixture, making it easier to highlight display zones, architectural details, or adjust for shifting interior layouts.

    l  With a working voltage of 85~265V, the product is compatible with most power systems worldwide, making it a flexible option for bulk purchasing and regional distribution.

    l  The opening diameter of 95mm fits common ceiling grids and drywall systems, simplifying installation for retrofit or new projects.

    l  Optional mirror-finish reflectors in silver, gold, and rose gold offer flexibility in design coordination, without affecting optical performance.





    We offer OEM manufacturing services according to specific requirements.Our OEM services include:



    We offer OEM manufacturing services according to specific requirements

    OEM

    Download Technical Sheet
