7W 300LM MTC-TD-7001 LED Recessed Mounted Downlight

 Designed with a clean, low-profile shape, this 7W LED downlight delivers 300 lumens and is easy to maintain. Available in fixed 3000K, 4500K, or 6500K color temperature options, it’s well suited for everyday lighting in large offices and commercial areas. It operates on 220~240V, 50/60Hz, ensuring stable performance and broad market compatibility.The rated power including 5W, 6W, 7W, 9W, and 15W, this series offers flexible choices for a wide range of projects. It is especially suitable for cost conscious distributors and lighting fixtures brands targeting local markets.

    Send Inquiry
    cpbjtp

    LED Recessed Mounted Downlight

    We offer OEM/ODM manufacturing services according to specific requirements across to most markets worldwide.

    product details

    Product models and descriptions

    MTC- abbreviation of a sub-brand of Byone,which means this series is morden theme and Cost-effective

    TD- Product series

    7- Product rated power

    00/01/02- Product finish color: 00-white,01-silver,02-black

    1/3- Product color temperature:1- single color temperature,3-3CCT in 1

    Example:

    MTC-TD7001: White finish color, single color temperature

    MTC-TD7023: Black finish color, 3-CCT in 1 switchable color temperature

    Always consult our qualified salesperson to know more about our product models and descriptions.

    Product specification

    Input Voltage:220V~240V,50/60Hz

    Power:7W

    Luminous:300 lm

    Chips model:SMD2835

    Color temperature : Available in 3000K/4500K/6500K single color temperature

    Power factor:>0.5

    CRI:Ra>80

    Dimensions:H50 x Φ120 mm

    Opening sizes: Φ95mm

    Housing material:Steel with PC

    Finish color: Available in White,Silver,Black or any other customized colors

    Working temperature: -20 ~ 40° C

    Application and installation:Suitable for recessed installation in ceilings with a 95mm cut-out, this model provides efficient general lighting for spacious offices, meeting rooms, and commercial interiors.

    Features

    ●This model offers a balanced solution for energy savings and sufficient brightness in commercial interiors.
    ●Designed to fit standard 95mm opening hole, simplifying installation and reducing adaptation work for contractors and installers.
    ●Offered in 3000K, 4500K, and 6500K selectable color temperature, each type uses a dedicated LED configuration to deliver consistent light quality and simplify driver design.
    ●This series offers practical specifications and stable supply, making it a reliable choice for distributors and lighting brands in markets with strict budget requirements.

    This 7W LED downlight is part of our basic downlight series, developed to meet everyday lighting needs with reliable performance and energy efficiency. Designed with a low profile and 95mm cut-out hole size, it delivers 300 lumens and is available in single CCT options (3000K, 4500K, 6500K) and 3CCT in one option. The product runs on 220~240V at 50/60Hz, making it compatible with standard power grids across various regions.

    We offer OEM manufacturing services according to specific requirements.Our OEM services include:

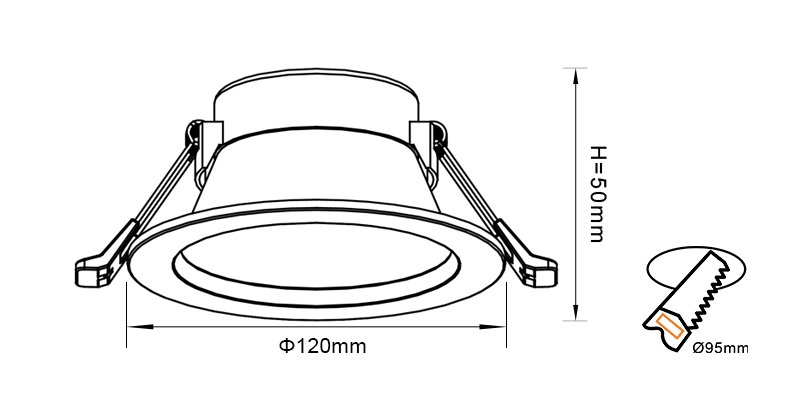

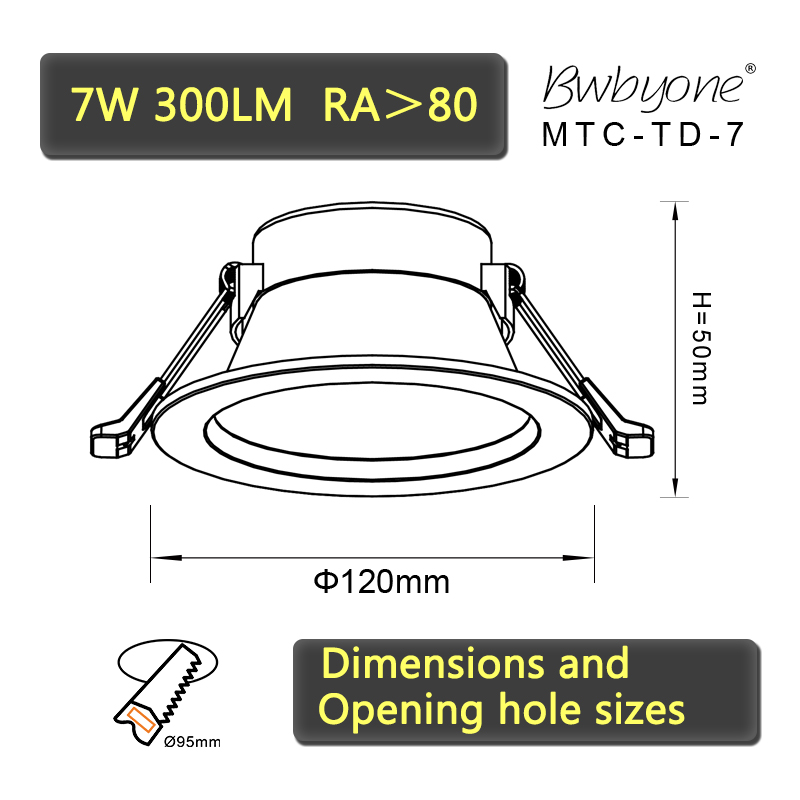

    Line Drawing

    MTC-TD-7 Line drawing m

    We offer OEM manufacturing services according to specific requirements

    OEM
