7W 400LM BW-SD607 LED COB Square Spot Light

The 7W square COB spot downlight is designed for versatile applications across European markets, including Turkey, where reliable performance and compliance with CE standards are essential. Featuring a compact overall size, it delivers 400 lumens of stable, high quality illumination. This spot light offers selectable color temperatures,3000K, 4500K, and 6000K,allowing flexible adaptation to a variety of residential and commercial environments. Built with a durable aluminum housing available in matte white or matte black finishes, the fixture combines a clean appearance with long-lasting durability.

The integrated driver simplifies installation and reduces the need for external wiring, making it ideal for projects where speed and efficiency are important. Having successfully passed the Turkish 3KV surge protection test, this model ensures safe and reliable operation in areas with frequent voltage fluctuations.Additionally, its technical specifications align with CE certification requirements, making it easier for OEM clients and brand owners to complete CE certification and speed up market entry.




    cpbjtp

    LED Recessed Mounted Panel Light

    We offer OEM/ODM manufacturing services according to specific requirements across to most markets worldwide.

    Product models and descriptions

    BW- abbreviation of company name Byone
    SD6- Product model series
    07- Product rated power
    0/1/2- Product finish color: 0-white,1-silver,2-black
    Example:

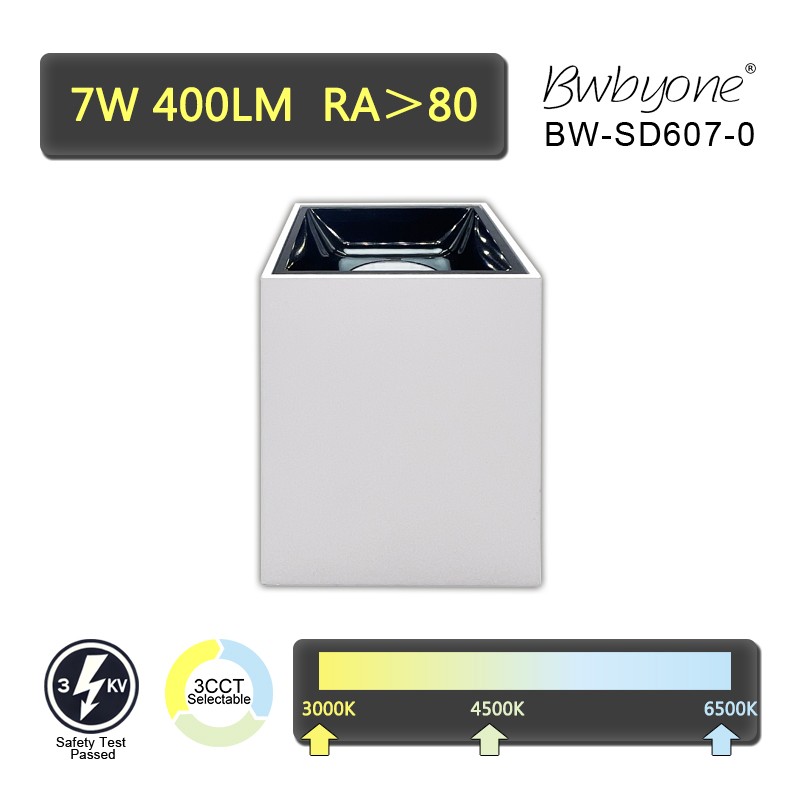

    BW-SD607-0:White finish color

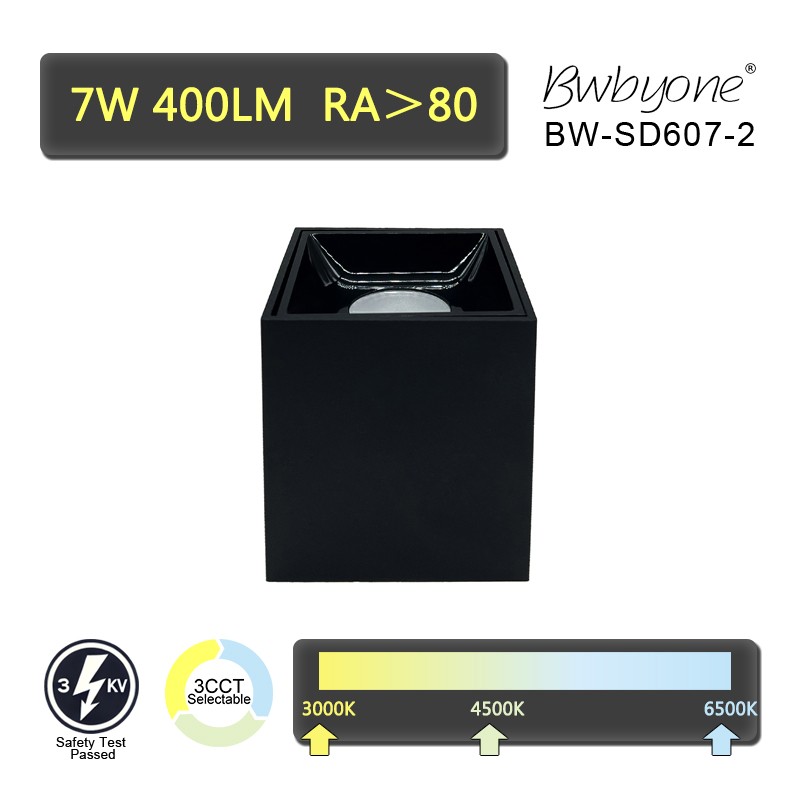

    BW-SD607-2:Black finish color
    Always consult our qualified salesperson to know more about our product models and descriptions.

    Product specification

    Input Voltage:220V~240V,50 Hz
    Power:7W
    Luminous:400 lm
    Chips model:COB
    Color temperature option:Available in 3000K/4500K/6500K single color temperature
    Power factor:>0.5
    CRI:Ra>80
    Dimensions:L x W x H 54 x 54 x 80 mm
    Housing material:Aluminium
    Finish color: Available in White,Silver,Black or any other customized colors

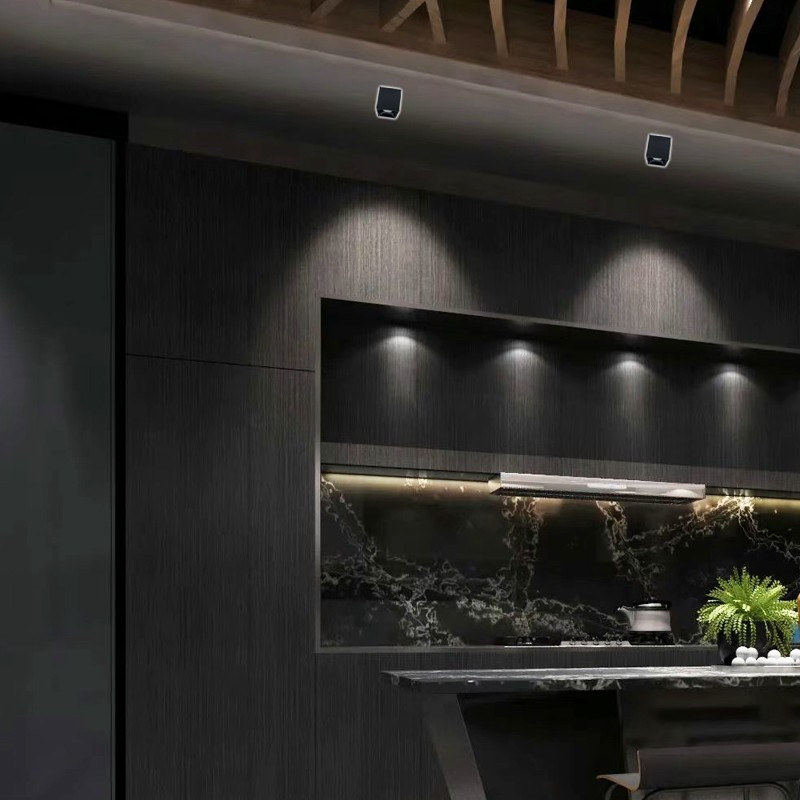

    Application and installation: This square COB downlight is suited for targeted illumination in hallways, kitchens, hotel corridors, small meeting rooms, boutique stores, and compact office areas. It is particularly advantageous for renovation projects and new builds where ceiling space is limited and consistent, efficient lighting performance is required.

    Features

    ● This COB light source offering smooth, low-glare illumination with a focused 45° beam angle.
    ● 7W power consumption supported by a high efficiency built-in driver achieving 85% power conversion, ensuring reduced energy loss and lower operational costs.
    ● Aluminum housing with white, black, or customer-specified finishes, designed in a compact form for low-clearance ceilings and equipped with an integrated driver for seamless installation.
    ● Designed with 3KV surge protection in accordance with Turkish standards, and fully aligned with CE technical requirements,supporting smooth OEM production and brand certification processes.

    We offer OEM manufacturing services according to specific requirements.

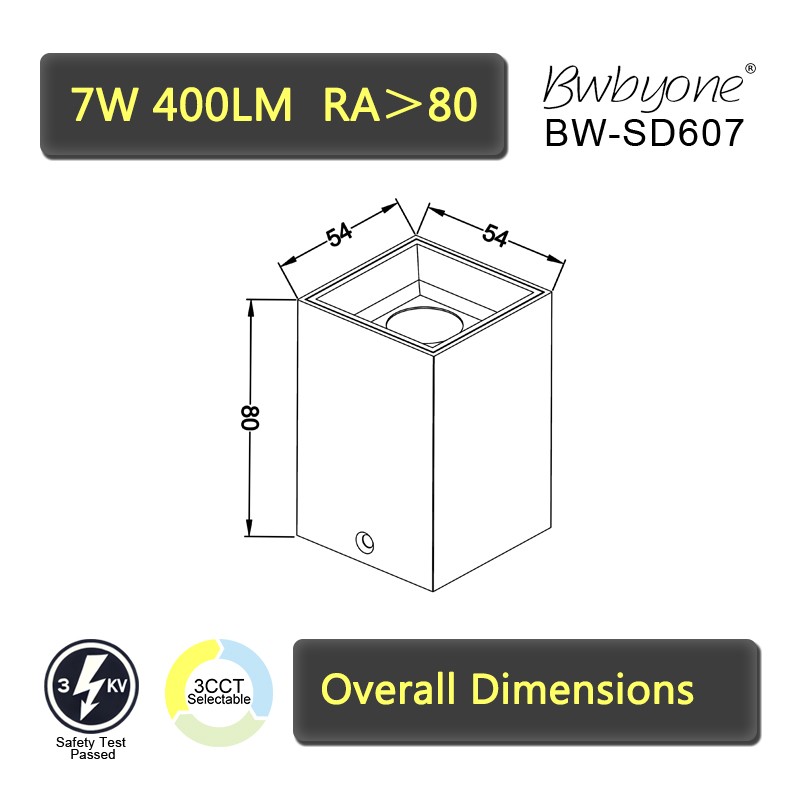

    Line Drawing

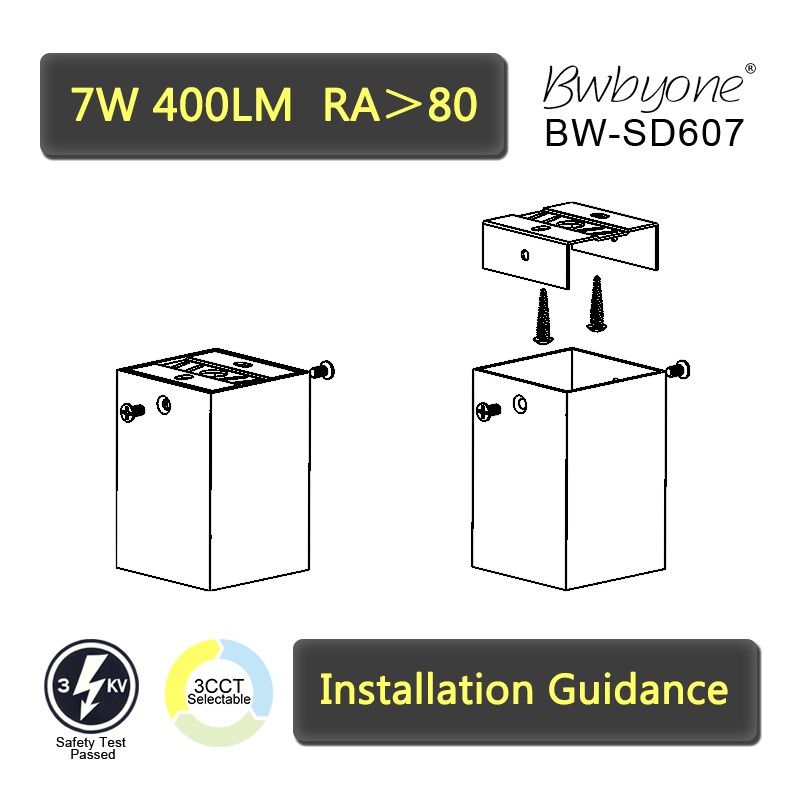

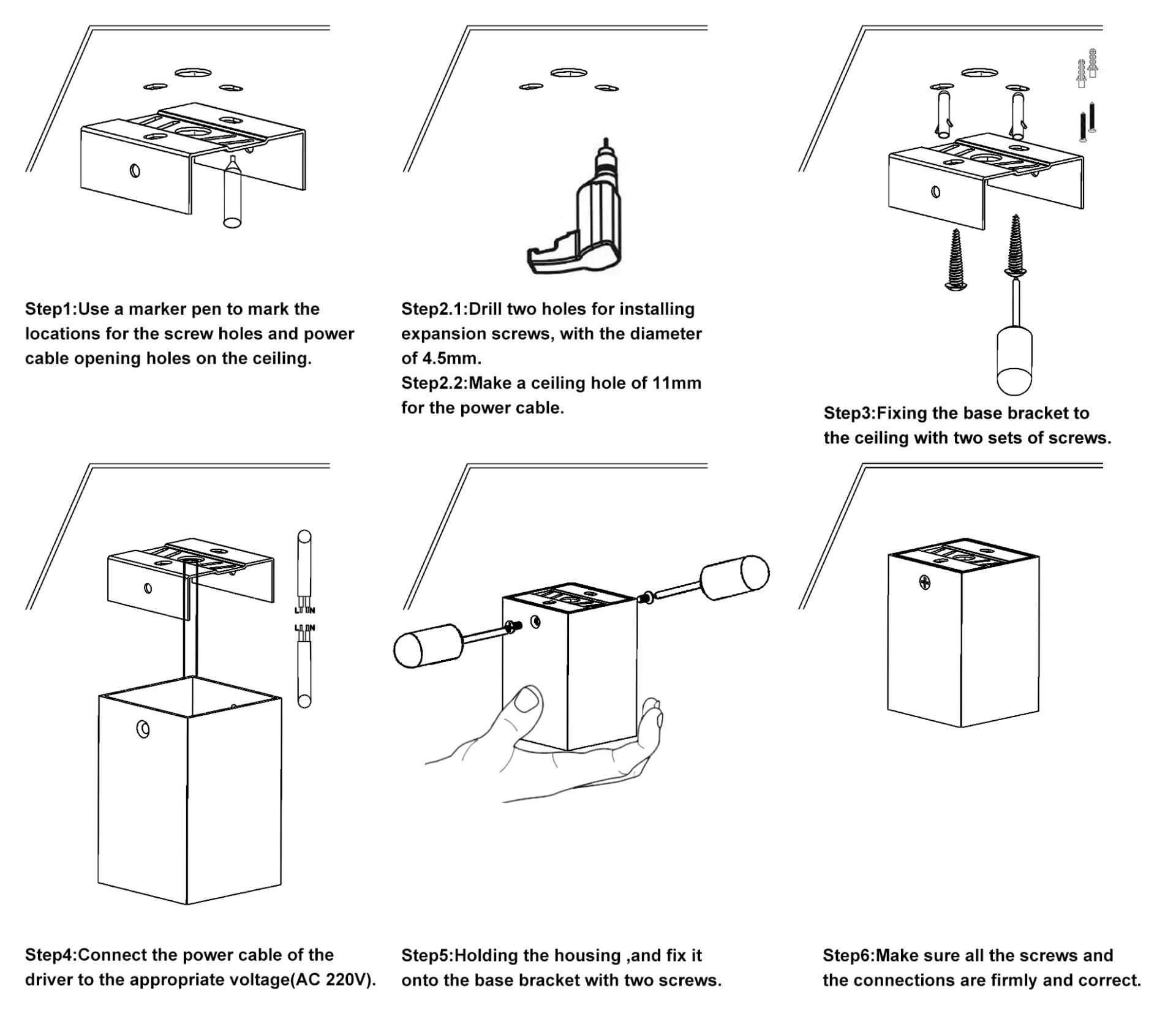

    BW-SD607 Installation Instructions

    We offer OEM manufacturing services according to specific requirements

    OEM

    Download Technical Sheet
