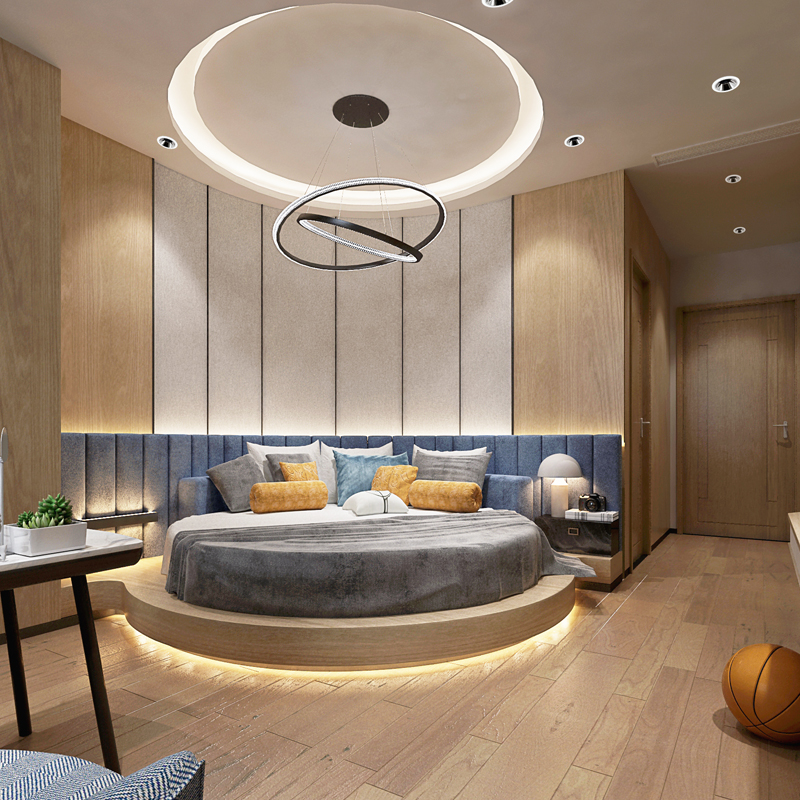

BWJD-A7001 Product visuals.jpg

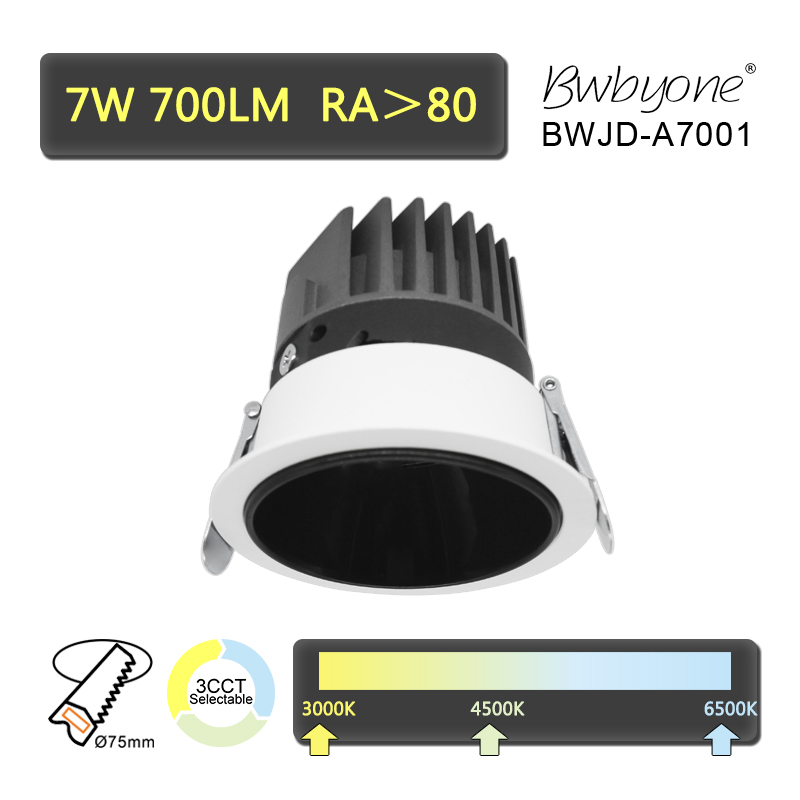

7W 700LM BWJD-A7001 LED Recessed Spot light

This 7W recessed LED spotlight offers a focused 700lm output in a compact and energy conscious design. Featuring a standard 75mm cut-out and a flexible installation ring, it accommodates slight beam angle adjustments during installation, providing angle flexibility within a compact housing. The spotlight uses a reliable COB chip combined with an aluminum housing and a plastic reflector, creating soft, uniform lighting with reduced glare. Its wide input voltage range of 85~265V supports global use, while the product's low wattage makes it an efficient solution for areas with tighter lighting requirements.

    Send Inquiry
    cpbjtp

    LED Recessed Mounted Panel Light

    We offer OEM/ODM manufacturing services according to specific requirements across to most markets worldwide.

    product details

    Product models and descriptions

    BW- abbreviation of company name Byone

    TD-A - Product series

    7- Product rated power

    0/1/2- Mounting ring finish color: 0-white,1-silver,2-black

    0/1/2- Reflector Finish color: 0-white,1-silver,2-black

    1/3- Product color temperature:1- single color temperature,3-3CCT in 1

    Example:

    BWJD-A7001: White mounting ring,White reflector finish color, single color temperature

    BWJD-A7021: White mounting ring,Black reflector finish color, single color temperature

    Always consult our qualified salesperson to know more about our product models and descriptions.

    Product specification

    Input Voltage:85V~265V,50/60Hz

    Power:7W

    Luminous:700 lm

    Chips model:COB

    Color temperature : Available in 3000K/4500K/6500K single color temperature

    Power factor:>0.5

    CRI:Ra>80

    Dimensions:H70 x Φ86 mm

    Opening sizes: Φ75mm

    Mounting ring material:Aluminium

    Mounting ring finish color: Available in White,Silver,Black or any other customized colors

    Reflector Finish color:Available in White,Silver,Black or any other customized colors

    Working temperature: -20 ~ 40° C

    Application and installation:Commonly used in apartments, small offices, stairwells, and compact hospitality spaces, this model is suit for settings where soft lighting and moderate brightness are sufficient. Its adjustable mounting ring makes it especially useful for angled ceiling sections or wall washing effects in niche areas.

    Features

    l  The COB LED chip delivers stable, flicker free illumination with a modest 700 lumens output, helping maintain energy efficiency without compromising visibility.

    l  This model includes a flexible mounting ring that allows for minor beam direction adjustments, giving installers the ability to fine tune lighting angles to suit architectural details or furniture layouts.

    l  The Aluminum mounting ring and heat sink provide dependable thermal management, ensuring long term reliability in everyday indoor conditions.

    l  The input voltage range of 85~265V enables easy integration into diverse regional power systems without additional conversion equipment.

    l  The plastic reflector has a nice surface finish, softening the beam and minimizing harsh reflections, making the light more comfortable for eyes in lower ceiling or close range environments.



    We offer OEM manufacturing services according to specific requirements.Our OEM services include:

    We offer OEM manufacturing services according to specific requirements

    OEM

    Download Technical Sheet
