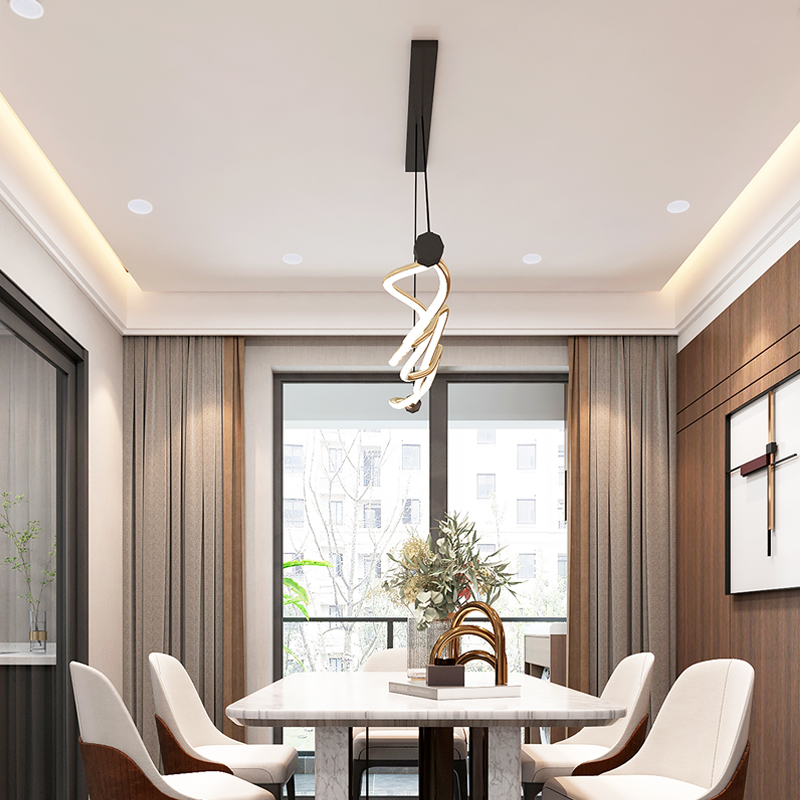

MTC-TD-6 Product visuals.jpg
MTC-TD-9 Line drawing.jpg

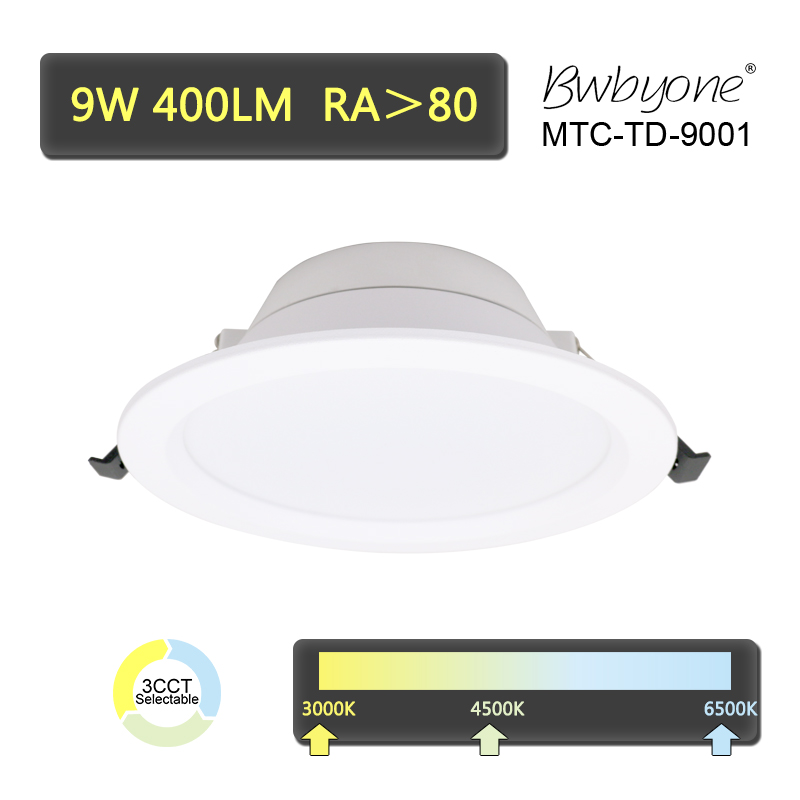

9W 400LM MTC-TD-9001 LED Recessed Mounted Downlight

With a 120mm ceiling opening size and output of 400 lumens, this 9W recessed downlight provides uniform, glare-controlled lighting for general purpose commercial use. It supports both single CCT models and tri-color selectable (3CCT in one) model,color temperature covering 3000K, 4500K, and 6500K. This design emphasizes thermal stability and mechanical simplicity, ensuring long term reliability in large area installations. Its standard input range (220~240V, 50/60Hz) ensures seamless deployment across most international markets, making it suitable for contractors and distributors managing projects.

    Send Inquiry
    cpbjtp

    LED Recessed Mounted Panel Light

    We offer OEM/ODM manufacturing services according to specific requirements across to most markets worldwide.

    product details

    Product models and descriptions

    MTC- abbreviation of a sub-brand of Byone,which means this series is morden theme and Cost-effective
    TD- Product series
    9- Product rated power
    00/01/02- Product finish color: 00-white,01-silver,02-black
    1/3- Product color temperature:1- single color temperature,3-3CCT in 1
    Example:
    MTC-TD9001: White finish color, single color temperature

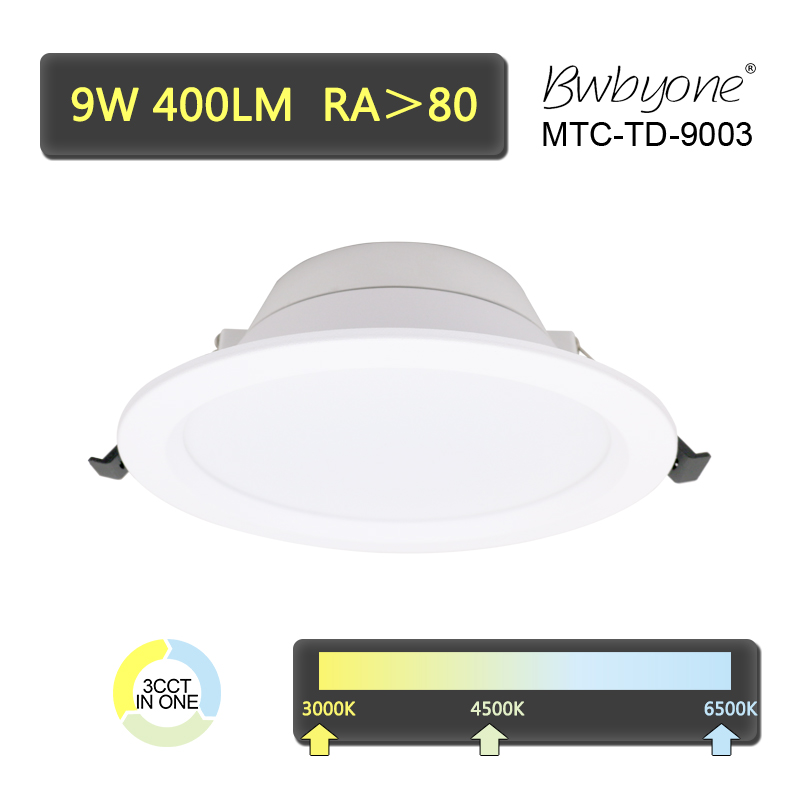

    MTC-TD9023: Black finish color, 3-CCT in 1 switchable color temperature
    Always consult our qualified salesperson to know more about our product models and descriptions.

    Product specification

    Input Voltage:220V~240V,50/60Hz

    Power:9W

    Luminous:400 lm

    Chips model:SMD2835

    Color temperature : Available in 3000K/4500K/6500K single color temperature

    Power factor:>0.5CRI:Ra>80Dimensions:H60 x Φ147 mm

    Opening sizes: Φ120mm

    Housing material:Steel with PC

    Finish color: Available in White,Silver,Black or any other customized colors

    Working temperature: -20 ~ 40° C

    Application and installation:Ideal for recessed use in commercial drop ceilings, this model suits open plan offices, shared work spaces, service corridors, retail stores, and basic lighting in institutional projects. It is a practical option for projects requiring repeatable layouts, standardized specifications, and dependable light distribution in high end usage areas.

    Features

    ●The 120mm opening size matches a wide range of standard ceiling panel systems, supporting fast replacements and consistent layout alignment.
    ●Delivers 400 lumens stable luminous performance at 9W, balancing brightness with long term efficiency in continuous use environments.
    ●Offered in both fixed color temperature (3000K / 4500K / 6500K) and 3CCT in one version, allowing greater flexibility in specification and inventory planning.
    ●Streamlined structure and unified components reduce variability,maintain LED performance across prolonged operating hours,and ensure consistent production for bulk orders.
    We offer OEM manufacturing services according to specific requirements.Our OEM services include:

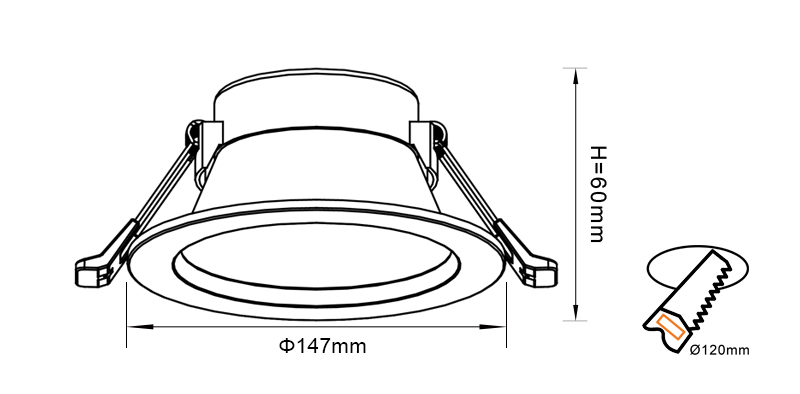

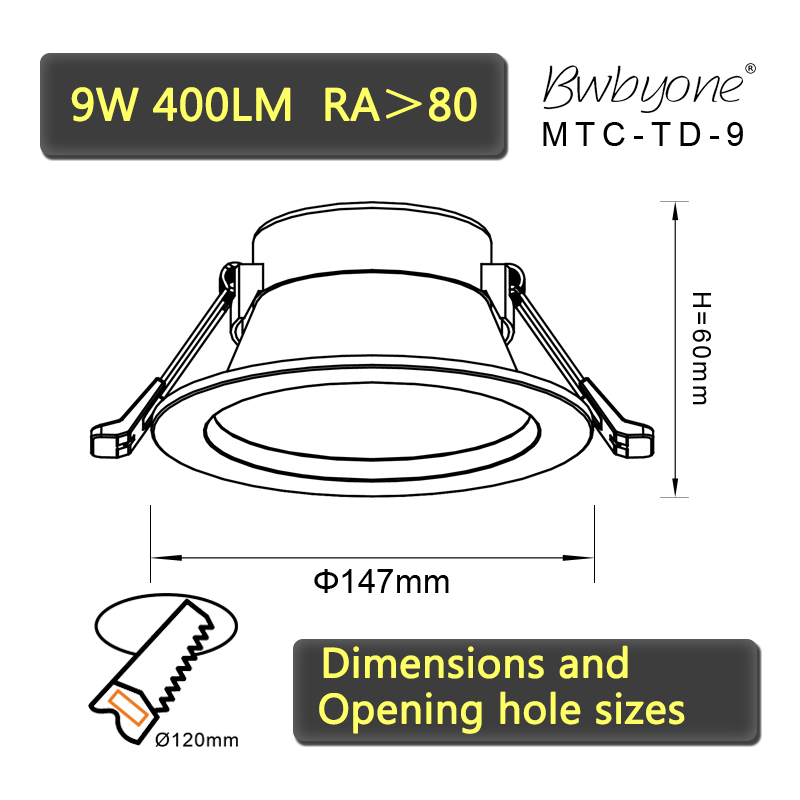

    Line Drawing

    MTC-TD-9 Line drawing m

    We offer OEM manufacturing services according to specific requirements

    OEM

    Download Technical Sheet
