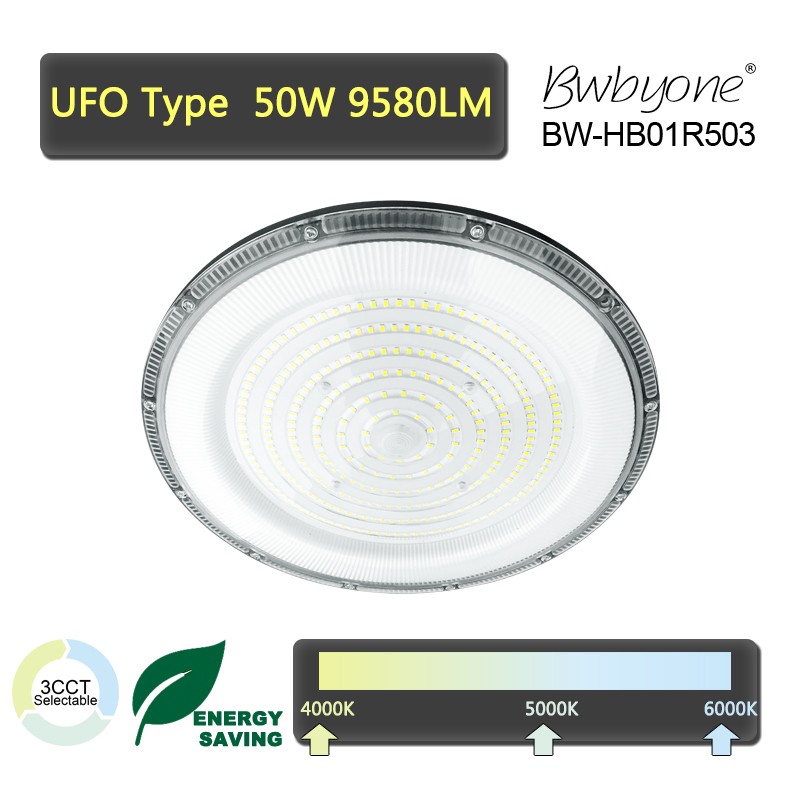

BW-HB01R503 front view.jpg

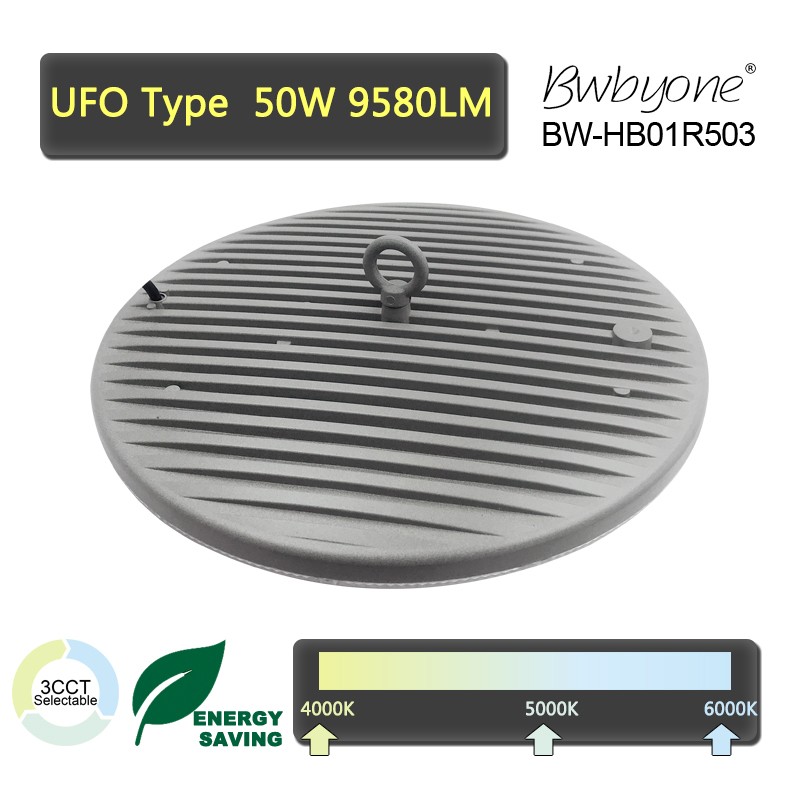

BW-HB01R503 back view.jpg

UFO LED High Bay light BW-HB01R503 High efficiency Round High Bay Light

This 50W LED High Bay light delivers an exceptional Maximum Luminous Flux of 200 lm/W, designed for superior performance and maximum energy efficiency. Available in 50W, 75W,100W, 150W, and 200W, it supports a wide input voltage range of 110V–264V, and a 50Hz operating frequency,making it suitable for global markets. With 4000K to 6000K color temperature options,it adapts to diverse industrial environments. Engineered for long-term performance and reduced power consumption, it offers a cost-effective solution for modern high ceiling applications.

Its outstanding performance makes it a great choice for energy retrofit projects, replacing traditional HID or fluorescent lighting systems. The wide color temperature range ensures suitability for both neutral and cool white lighting preferences, while the durable construction ensures stable, long working hour performance in demanding environments.




    Send Inquiry
    cpbjtp

    LED Recessed Mounted Panel Light

    We offer OEM/ODM manufacturing services according to specific requirements across to most markets worldwide.

    product details

    Product models and descriptions

    BW- abbreviation of company name Byone
    HB01- Product model series
    R/L-Product type. R:round type,L:Linear type
    50- Product rated power
    0/1/2- Product finish color: 0-white,1-silver,2-black,3-grey
    Example:
    BW-HB01R50-3:50W,Round type, Grey finish color
    BW-HB01R200-2:200W,Round type, Black finish color
    Always consult our qualified salesperson to know more about our product models and descriptions.

    Product specification

    Input Voltage:110V~264V,50 Hz
    Power:50W
    Luminous flux:9580 lm
    Luminous efficacy:191.9 lm/W
    Beam Angle: 100°
    Chips model:2835
    Color temperature option:Available in 4000K/5000K/6000K single color temperature
    Power factor: 0.94
    CRI:Ra=80
    Dimensions:H70 x Φ260 mm
    Housing material: Die cast Aluminium
    Finish color: Available in Grey,Silver,Black or any other customized colors
    Application and installation:This model is used in warehouses, logistics centers, production facilities, workshops, large supermarkets, exhibition halls, and sports arenas, this high efficiency luminaire is designed for spaces requiring consistent, high lumen output with minimal energy use.

    Features

    ● Significantly reduces energy costs while providing consistent, high lumen output. Suitable for facilities aiming to improve lighting performance without increasing power consumption.
    ● Ensures stable operation under various regional power systems. Best solutions for international projects and distributors serving multiple markets.
    ● Covers a wide range of ceiling heights and application needs, allowing for flexible lighting design.
    ● Offers versatility from neutral white to daylight white, meeting visual comfort and task lighting requirements.
    ● Minimizes power loss and improves overall system efficiency, especially valuable in large area industrial installations.
    ● Delivers color rendering suitable for industrial and commercial environments, ensuring clarity without compromising energy performance.
    ● Advanced thermal design enhances reliability and extends lifespan, even during continuous operation in demanding industrial environments.
    ● Supports hook, pendant, and surface mounting for easy adaptation to different high-bay installation requirements.

    We offer OEM manufacturing services according to specific requirements.

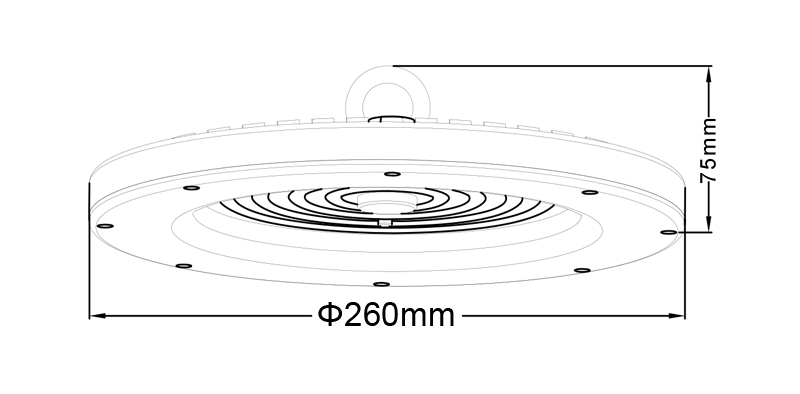

    Line Drawing

    BW-HB01R503 line drawing m
